Yaskawa Diff

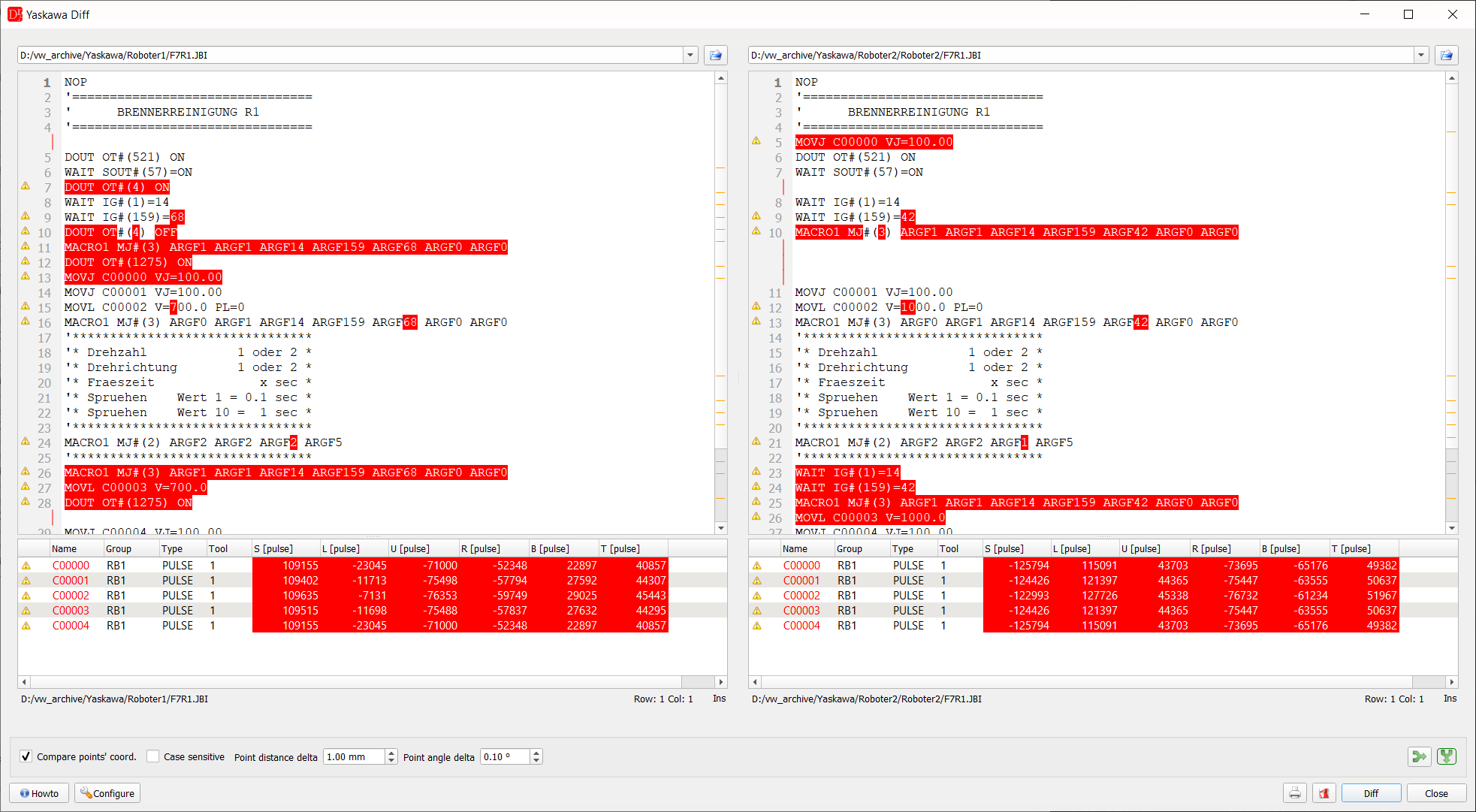

F7R1.JBI of two robots - changed lines and pulse values of the points


The Yaskawa Diff extension (menu Yaskawa » Compare Yaskawa programs) compares commands and point coordinates of Yaskawa job (*.jbi) programs.
Simply choose two files and press Diff button to show all differences.
The actual comparison result can be printed or saved into PDF file.

Differences are highlighted directly in the compared text, and collapsible folds stay marked in the left margin after the comparison, exactly as they are in the normal Yaskawa job editor.
Right-click on either side of the comparison to expand or collapse folds - individually for the left or right file, or for both files at once.

With the Compare points' coord. checkbox the points of the //POS section are compared too: differing values are highlighted in the point tables below the texts and a warning icon marks the lines and points which differ.
The Point distance delta / Point angle delta fields set how much a value may differ before it is treated as a real difference.

You may also refer to Yaskawa Archive Diff plugin for the comparison of whole backups.
