DReS · DrAmaT Robot Studio

The offline editor built for VW-standard robot programs — and standard robots too

Four controller families in one tool: KUKA KRC and VKRC, Fanuc, ABB and Yaskawa. Write, validate and document robot programs at your desk — and catch standard violations before the robot moves.

Download free trial See pricing
Version 6.6 Windows 10 & 11 No installation of WorkVisual required New Standard KUKA KRC support
DReS showing a KUKA robot model with its work envelope and programmed path in 3D
3D robot model, work envelope and programmed path — directly from the source code.
Controllers supported KUKA FANUC ABB Yaskawa KUKA KRC & VKRC · VFanuc · ABB · Yaskawa
Why DReS

Fix the program on your desk, not on the shop floor

Every standard violation found offline is a line stop you never had to explain.

On-the-fly VASS Standard check

Speeds, accelerations, Folge structure, access requests, interlocks and welding-gun balance are validated while you type — against the VW standard, not just the syntax.

See the cell in 3D

Load KUKA models and Process Simulate scenes, inspect the work envelope, walk the programmed path and recalculate point coordinates after a tool or base change.

Documentation without the copy-paste

Generate cell documentation, long texts and E-Plan cross-references automatically, straight from the archive you already have.

What's inside

Everything the VW standard asks of you, in one editor

DReS is not a text editor with syntax colouring. It understands the controller, the archive and the standard behind them.

Editing that knows the controller

  • Standard KUKA KRC — edit KRL programs that don't follow the VW standard (separate licence)
  • 1 : 1 VKRC source-code view — what you see is what the robot runs
  • Fully configurable command templates and auto-completer
  • Configurable VKRC User Tech feature
  • Copy & paste directly from VW documentation examples
  • Automatic reordering of M, E and A operands in FB PSPS and FB ONL
  • Replace a variable (e.g. a Merker) across every file in the session

Robot & archive intelligence

  • Robot Check — validates tool, base, payload, calibration and macros
  • Reads the KUKA symbol table (Langtexte) from the WorkVisual project
  • Explains merkers, flags and outputs defined in makro 50–59 and makrosps
  • Tool, base and calibration data on a dedicated tab

Export & housekeeping

  • Export every file to a Robot ZIP archive in one step
  • Automatically adds a new VW User to the resources
  • Automatic fixing of common syntax warnings
  • Works with VKRC2 software version 5.4.0 and higher

Compare, document, verify

  • File diff and full archive diff between two robot backups
  • Automatic documentation generator per controller family
  • Long Text Generator and Data Integrity check
  • E-Plan Reader and E-Plan SPS Reader
  • Process Simulate (PSZ/JT) viewer and Robot Data Spy
VASS Standard

What the syntax check actually verifies

These are the rules DReS validates on every movement point, every Folge and every interlock — the ones that normally surface during commissioning.

  • VB, VE and ACC parameters in all movement points
  • VE and SPSTrigger in all movement points
  • 1st, 2nd and last point of a Folge correctly programmed
  • 1st, 2nd and last point of a Folge on the same coordinates
  • Zutrittsanforderung correctly programmed
  • Fahrbedingungen correctly programmed
  • Roboterverriegelungen correctly programmed
  • Roboterverriegelungen in every Fahrbedingung
  • Genau for KLIN and KCIR points
  • Welding-gun balance correctly programmed

Read the full documentation

Screenshots

See it in use

Version 6.6, running on Windows.

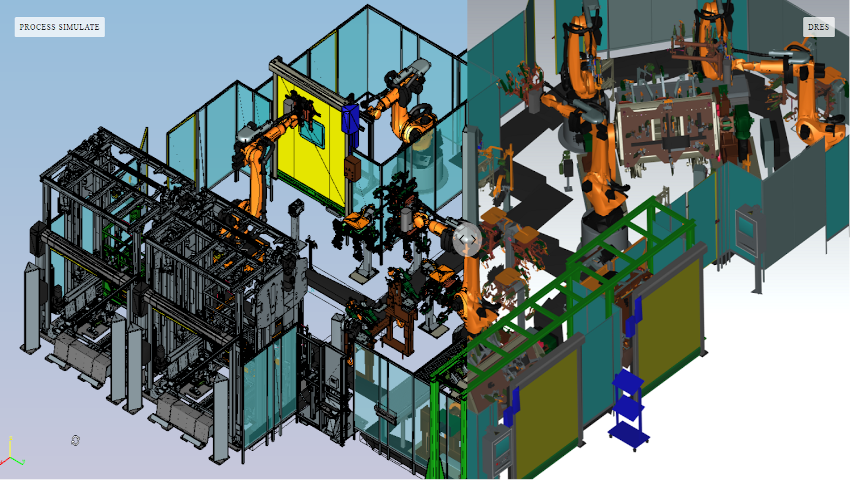

Process Simulate PSZ viewer showing a full 3D production cell with robots and fixtures
Process Simulate PSZ viewer Open the complete 3D cell without a CAD licence. Plugin documentation →

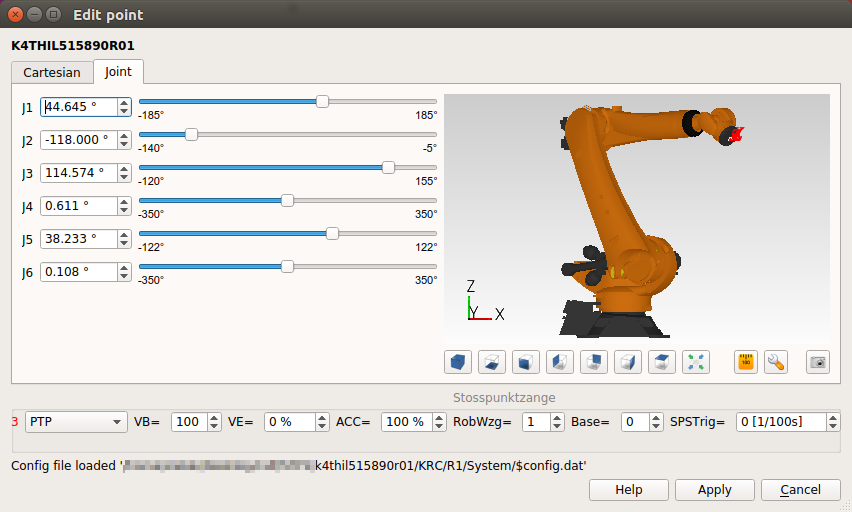

KUKA 3D viewer with the integrated point editor open
3D viewer & point editor Edit a point and watch the robot follow it.

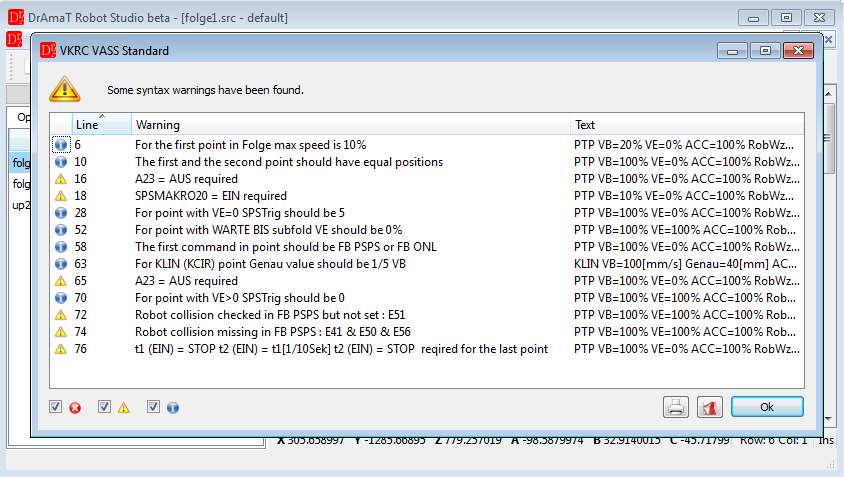

DReS listing VASS Standard syntax warnings for the open robot program
VASS Standard syntax check Warnings appear as you type, with the rule behind them.

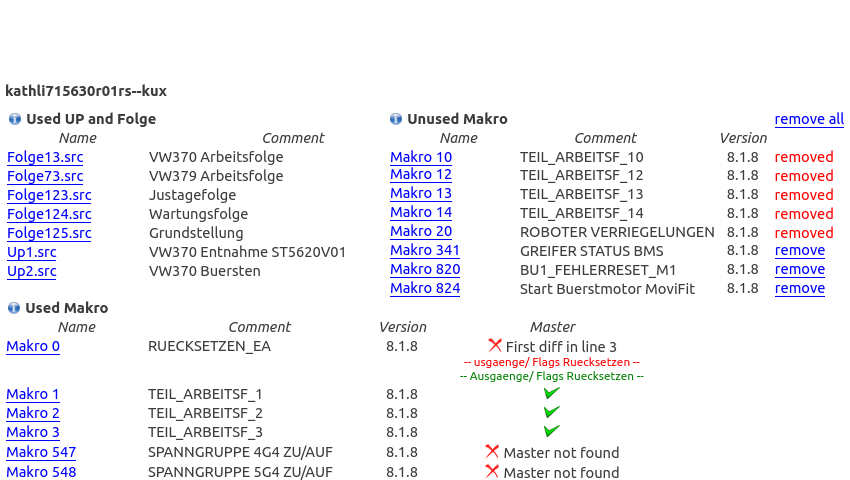

Robot Check report validating tool, base, payload, calibration and macros
Robot Check Tool, base, payload, calibration and macros in one report.

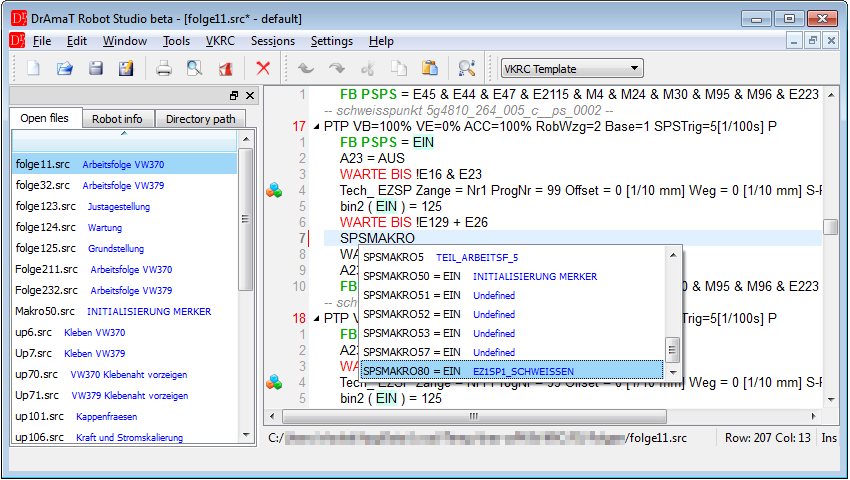

Configurable command auto-completer suggesting VKRC instructions
Command completer Fully configurable — your templates, your standard.

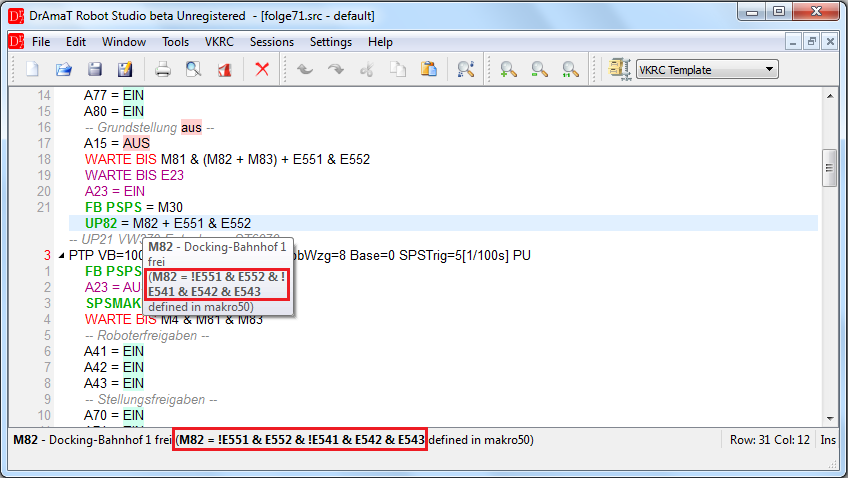

Explanation of merkers, flags and outputs defined in user macros
Merker & flag explanation Reads makro 50–59 and makrosps so you don't have to.
Running a program for every robot in the cell Simulation straight from the source code, in single step or continuous mode. How the simulation works →
E-Shop

Licences

Prices are net, per single standalone licence. Additional discounts apply to larger quantities.

New sales model since 1 January 2026. Selected packages are available in an annual subscription model only. If you bought a licence before that date and want to add plugins, contact us for an individual offer.

New
KUKA
KRC & iiQKA — standard KUKA
  • KRC600 €
  • iiQKA600 €
  • KRC + iiQKA −25% 900 €1200 €

per year, net

For KUKA robots programmed outside the VW standard — KRL source files straight from the controller archive, with 3D preview and file comparison. Buy the KRC and iiQKA packages together and save 25%.

In the KRC packageIncluded
Editing and saving KRL programs of standard KUKA KRC controllers
OLP 3D preview of the robot and its path
Compare files
Archive Diff in development Planned

Separate licence required. The KRC and iiQKA packages are licensed on their own. Neither is covered by a VKRC Basic or VKRC Expert licence.

Request an offer

All prices are net prices for a single, standalone licence. Volume discounts available — ask for a quote.

System requirements

Runs on the PC you already have

Operating system

  • Windows 11
  • Windows 10
  • Windows 8.1 / 7 (legacy, still supported)

Hardware & runtime

  • 400 MB free disk space
  • .NET Framework 4.0 or higher
  • Licence key (USB or network dongle)

Optional — symbol table

Free trial

Download DReS 6.6

Fill in the form and we'll email you a link to the download area.

What you get

  • The full editor for KUKA VKRC and KRC, VFanuc, ABB and Yaskawa
  • 3D viewing, diffs and documentation preview
  • Access to the release notes and update channel

Limits of the non-commercial version: the full syntax check and saving of modified files are disabled.

No email after a few minutes? Check your spam folder. Latest changes are listed in the release notes.

Get in touch

Request an offer

Tell us which controllers and packages you need — you'll get an individual quote.

Direct contact

office@dramat.eu
+48 606 642 841

Existing customer since before 1 January 2026 and looking to add plugins? Write to us and we'll prepare an individual offer.

Volume discounts available
